MATERIALS PROCESSING for specialty applications
Materion offers unique, proprietary materials processing capabilities, matching our industry-leading technologies to our customers’ applications to optimize material performance and specialized fabrication.
BERYLLIUM PRODUCTS PROCESSING

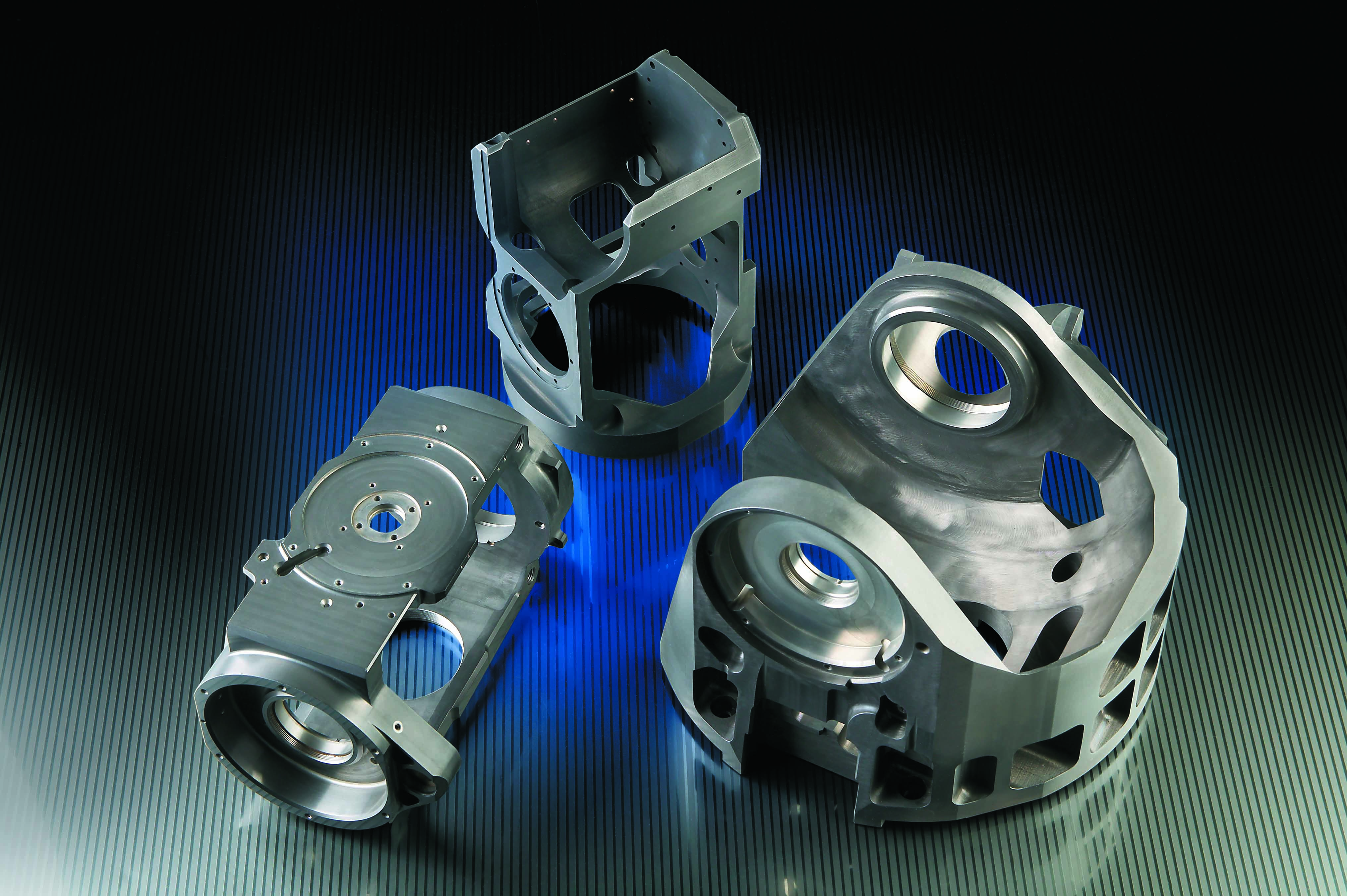

Cold Isostatic Pressing
Cold Isostatic Pressing
- Used for parts with more complex geometry, CIP preforms blanks close to net shape directly from beryllium powders and produces the desired blank shape with excellent definition of detail.

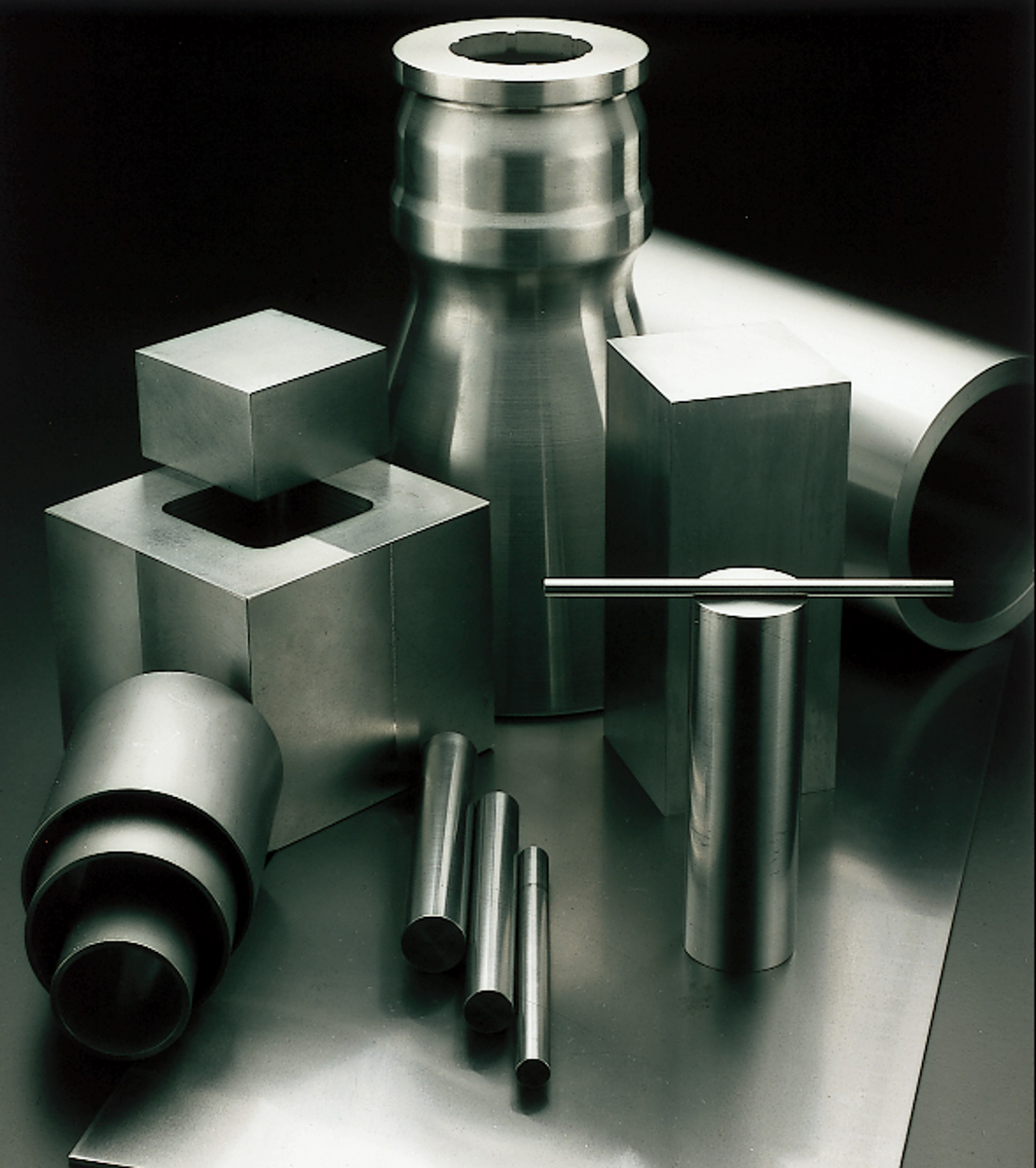

Hot Isostatic Pressing
Hot Isostatic Pressing
- Used for parts having simple shapes, HIP consolidates beryllium powders in sealed, vacuum-degassed containers to nearly 100% density, resulting in a blank that is the same shape as the container.
Vacuum Hot Pressing
Vacuum Hot Pressing
- The most commonly used beryllium pressing technique, VHP results in a uniform, fully-dense, fine-grained beryllium. Through VHP, it is possible to produce a variety of beryllium grades with differing characteristics for many divergent applications.
CLAD METALS PROCESSING

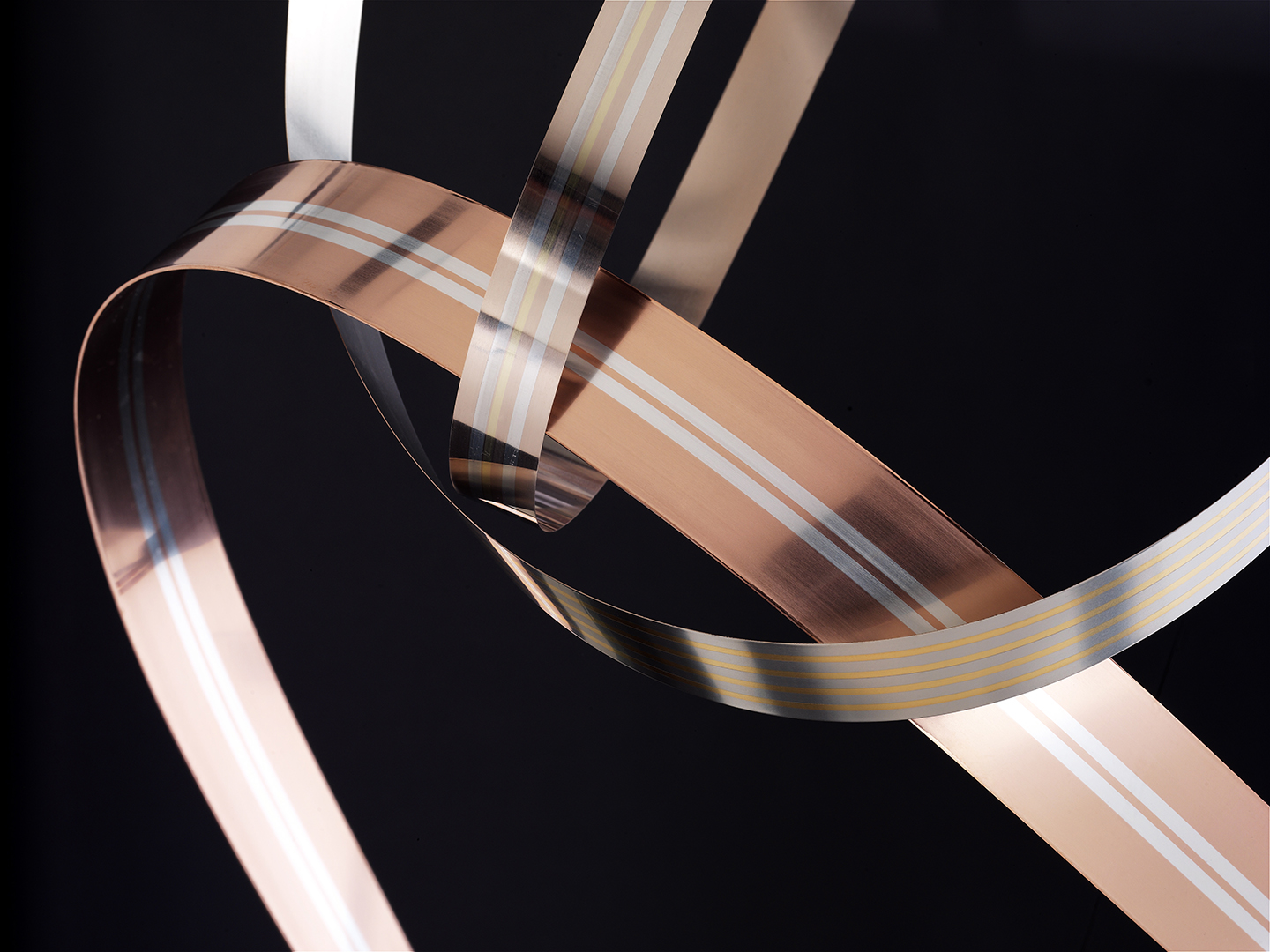

Specialty Cladding
Specialty cladding
- Specialty cladding combines dissimilar metals to optimize their bulk and surface properties. These combinations solve electrical, mechanical, thermal, chemical or other physical performance challenges not achievable with a single material.
Overlay Cladding
Overlay Cladding
- Joins dissimilar metals by applying high pressure without brazing alloys or adhesives which allows us to custom engineer materials for specific applications.

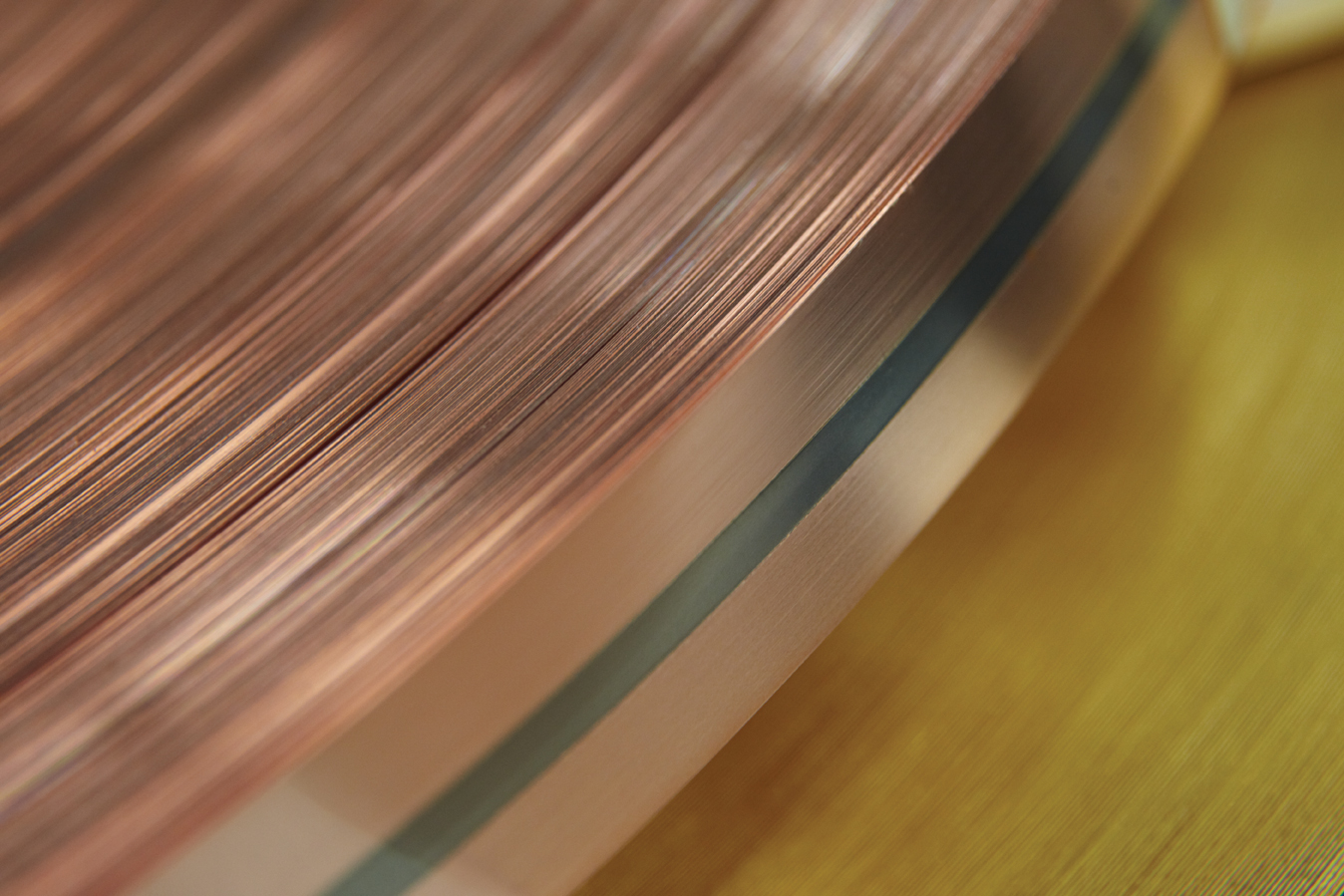

Inlay Cladding
Inlay Cladding
- Flexibility allowing the designer to incorporate diverse properties, such as weldability, corrosion resistance, and conductivity, at different locations.
Electron Beam Welding and Zone Annealing
Electron Beam Welding and Zone Annealing
- A continuous process that uses focused electron beam energy to weld or heat and soften very exact locations across the metal strip.

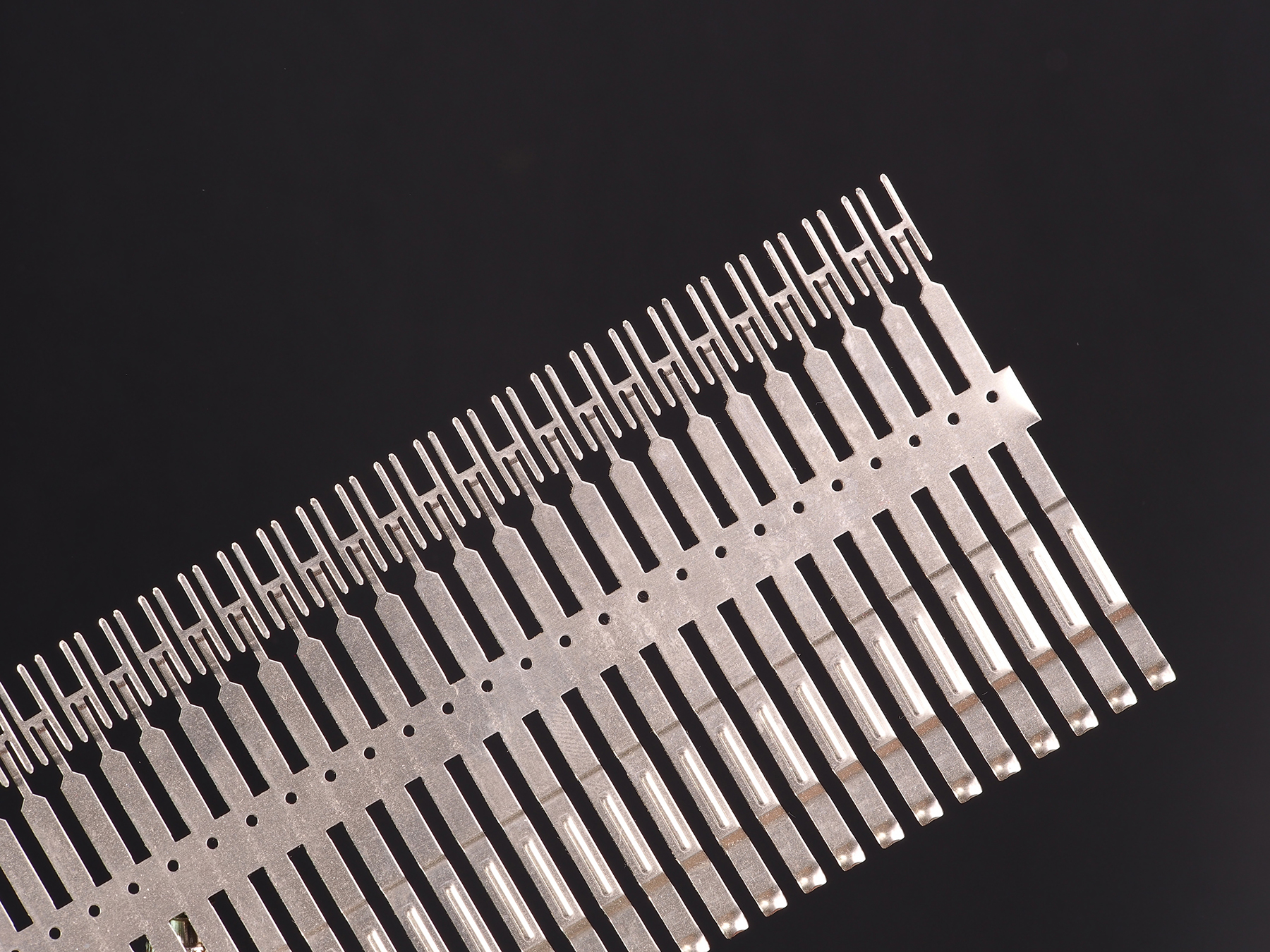

Electroplating
Electroplating
- Enables thin layers of metals to be deposited onto coils of base metals or pre-stamped parts. Reel-to-reel electroplating technology provides precise edge definition and location tolerance.
Continuous Profiled Strip
Continuous Profiled Strip
- Uses reel-to-reel milling for unlimited design possibilities for use in high speed stamping.
TECHNICAL CERAMICS PROCESSING
Cold Isostatic Pressing

Cold Isostatic Pressing
- Used for parts with more complex geometry, CIP preforms blanks close to net shape directly from beryllium powders and produces the desired blank shape with excellent definition of detail.
Ultrasonic Drilling
Ultrasonic Drilling
- For customer tube or laser bore design with tighter tolerances than can be achieved by pressing.

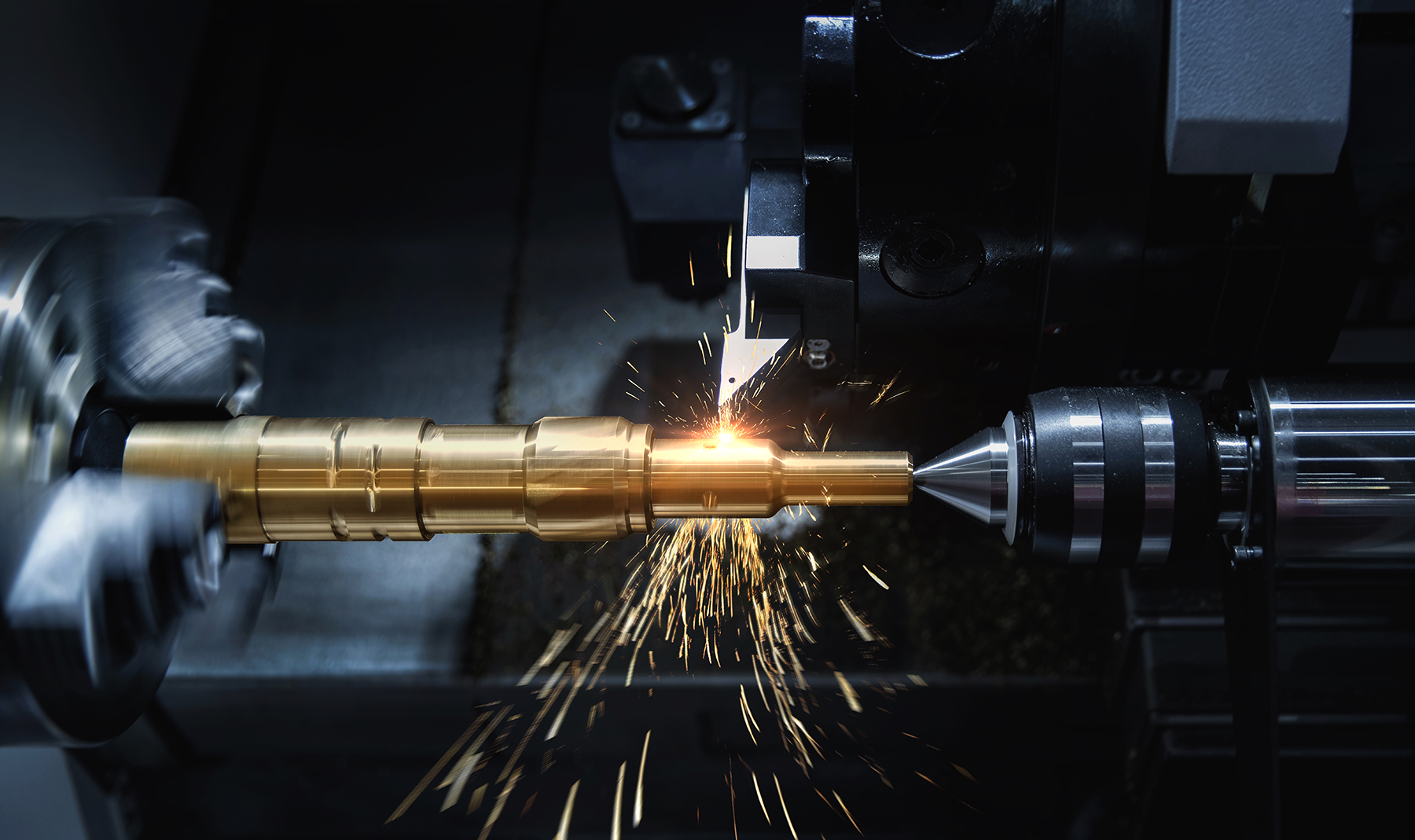

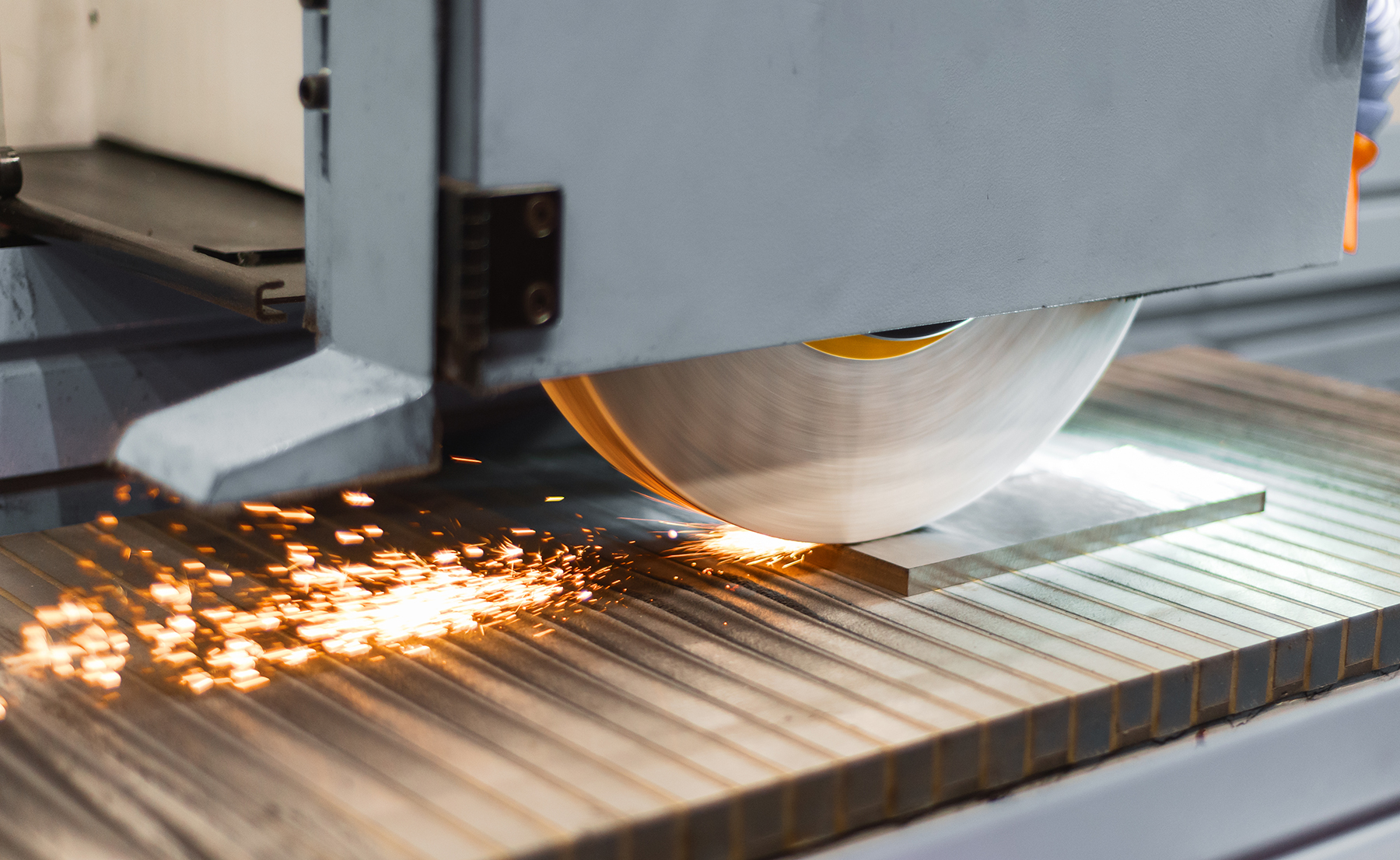

OD/ID Grinding
OD/ID Grinding
- Used when a customer’s design has a tighter tolerance on the OD and/or ID profiling than can be met by pressing alone.

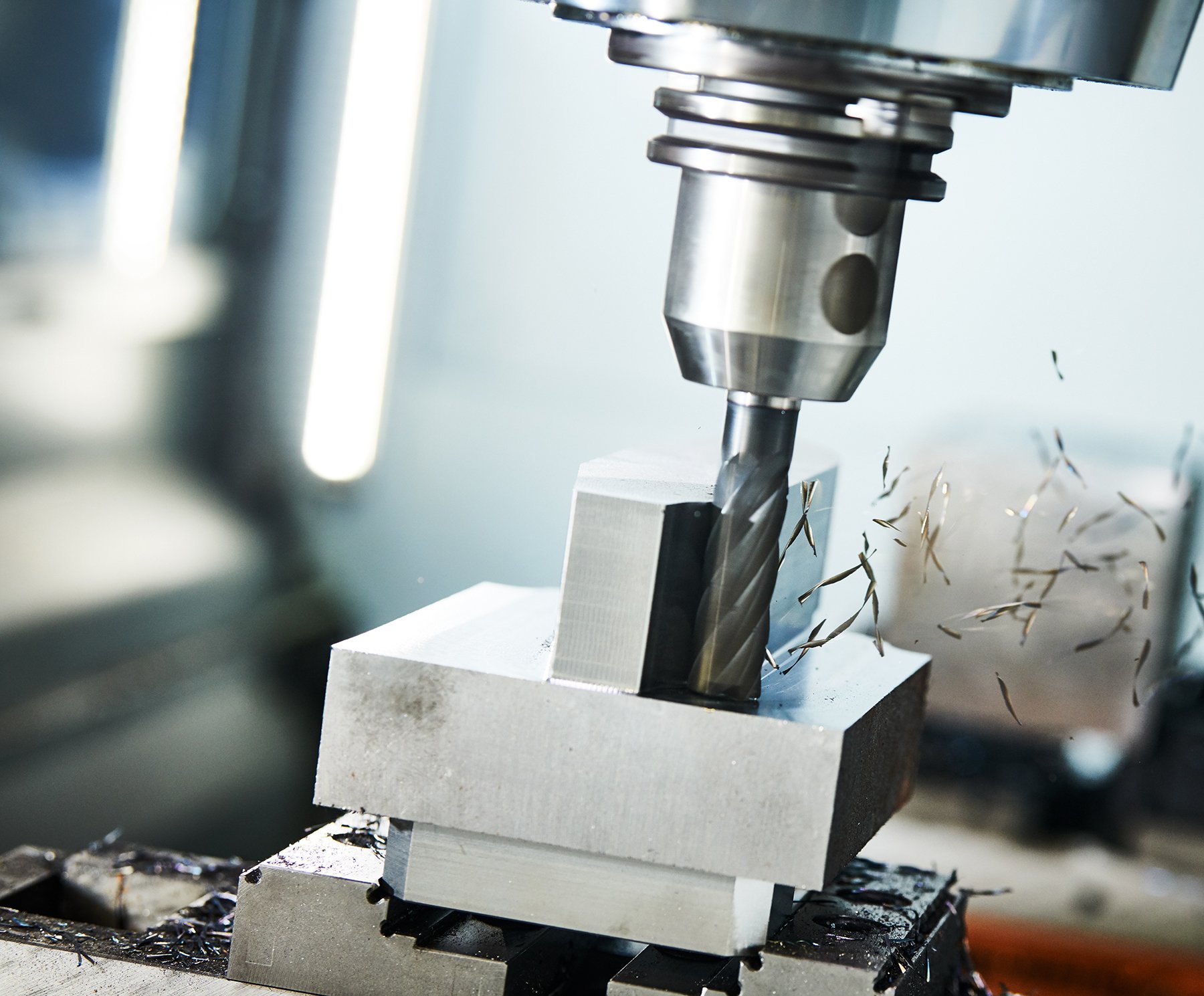

CNC Milling
CNC Milling
- Used primarily to machine green (unfired) ceramic to near net shape.
UNPARALLELED SERVICE AND SUPPORT
Materion serves leading-edge, high-growth global markets. Our team of experts is continually seeking to align our product and service portfolios with the latest market and technology trends.
If you have questions, or would like to learn more, please contact our experts.
